Best NMEA 2000 Bulkhead Connectors for Marine Networks
Direct answer: When selecting NMEA 2000 bulkhead connectors, choose models designed for wet marine environments with reliable seals, easy panel mounting, and compatibility with NMEA 2000 backbones. This guide highlights five practical options for common marine apps, from through-bulkhead pass-throughs to field-serviceable terminations. The top picks suit boaters needing reliable backbone connections, serviceable ends, or panel-mount solutions for control panels and instrument displays.
Who should read this: boaters, marine electricians, and DIY enthusiasts seeking durable bulkhead connectors for NMEA 2000 networks. The list covers through-bulkhead pass‑throughs, sealed M12 bulkhead connectors, and field-serviceable terminations. A quick summary helps compare suitability for different network roles such as backbone extensions, device terminations, or panel-mount installations.
| Product | Best For | Key Benefit |
|---|---|---|
| Ancor 270107 NMEA 2000 Through Bulkhead Connector | Backbone passes through bulkheads | Simple, through-bulkhead design |
| Plinkwirekb M12 A Code 5Pin Male to Female (2PCS) | IP67 sealed bulkhead feedthroughs | Sealed, rugged M12 bulkhead connection |
| Plinkwirekb M12 A Code 5Pin Male to Female (1PCS) | Bulkhead terminations like a single-circuit pass-through | Compact, reliable panel mount |
| NMEA 2000 T-Connector N2k Tee for Garmin/others | Expanding a NMEA 2000 backbone | Easily add devices to the network |
| Ancor 270109 NMEA 2000 Female Field Serviceable Connector | Field repairs or end terminations | Serviceable female end for bare cable terminations |
Ancor 270107 NMEA 2000 Through Bulkhead Connector
This through-bulkhead connector is designed to pass a NMEA 2000 backbone through a panel or bulkhead, enabling a clean, protected connection on both sides of the surface. Best for boaters who need a simple, unobstructed pass-through without terminating a field cable inside the panel.
Best for: boaters installing instrument panels or control centers where a single bulkhead pass-through is required. It simplifies routing and reduces exposed cabling at the panel edge. Caution: verify panel hole size and sealing compatibility for your vessel’s environment.
Plinkwirekb M12 A Code 5Pin Male to Female Converter IP67 Bulkhead Feedthrough (2PCS)
Two-pack M12 A-Coded 5Pin bulkhead feedthroughs provide sealed connections with an IP67 rating, suitable for harsh marine environments. They feature male-to-female mating, a 60V DC rating, and a robust threaded joint for sensor devices and field bus components. Best for: installations requiring sealed bulkhead adapters or easy frontline repairs. Limitation: bulkhead depth and nut size (M16 X 1.5) must fit your panel and mounting space.

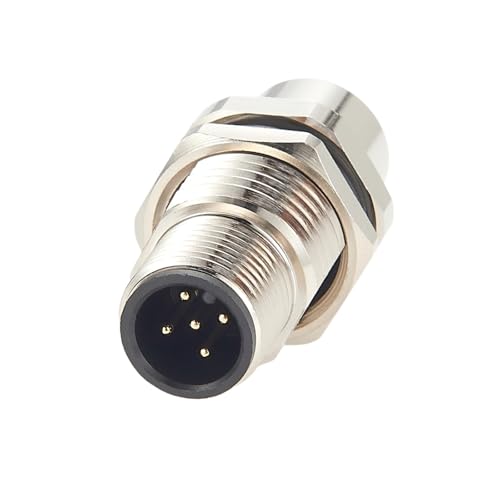

Plinkwirekb M12 A Code 5Pin Male to Female Converter IP67 Bulkhead Feedthrough (1PCS)
This single-pack bulkhead feedthrough complements the two-pack option when only one pass-through is needed. It shares the same IP67 sealing, 60V DC rating, and M12 thread connection. Best for: limited installs or spare parts where a single bulkhead connector is required. Caution: ensure panel cutout is compatible with the 16.5mm hole recommended by the design.
NMEA 2000 T-Connector N2k Tee for Marine Networks
This T-connector adds a device or display to an NMEA 2000 backbone. Best for: expanding a network backbone to accommodate more sensors or displays. It provides a waterproof and plug-and-play approach to extending the network. Caution: avoid overly complex tee configurations in tight spaces where wiring routing may be an issue.
Ancor 270109 NMEA 2000 Female Field Serviceable Connector
Female field serviceable connectors terminate or replace bare NMEA 2000 cable ends, enabling straightforward repair or retermination in the field. Best for: technicians performing maintenance or extending backbones where extra terminations are needed. Limitation: field termination requires proper crimping and seal integrity to prevent water ingress.
Ancor 270110 NMEA 2000 Male Field Serviceable Connector
Male field serviceable connectors allow termination or replacement of bare NMEA 2000 cables, offering a quick fix on the go. Best for: field technicians needing a reliable male end for quick repairs or backbone terminations. Caution: ensure correct polarity and crimping technique to maintain waterproof seals.
Buying Guide: Key Considerations For NMEA 2000 Bulkhead Connectors
- Environment and sealing: Look for IP ratings (e.g., IP67) and gaskets to withstand boat exposure to saltwater, spray, and humidity.
- Panel fit and mounting: Check hole size, panel thickness, and nut dimensions to ensure a secure, watertight install.
- Electrical ratings: Confirm voltage and current specs meet your NMEA 2000 backbone needs, typically 60V and a few amps for most devices.
- Connection type: Decide between through-bulkhead, bulkhead pass-through, or field-serviceable terminations based on installation and maintenance plans.
- Compatibility: Ensure the connector is compatible with your NMEA 2000 backbone components and device connectors (A-code vs B-code, etc.).
- Ease of installation: Consider whether you prefer plug-and-play solutions or more hands-on crimping and sealing work.
- Replacement and maintenance: Field serviceable ends simplify repairs but require proper crimping tools and sealing practices.
- Space and routing: Plan for cable length, bend radii, and available space behind panels to avoid stress on connectors.
Frequently Asked Questions
- What is a bulkhead connector used for in NMEA 2000 networks?
Bulkhead connectors allow safe, protected passage of NMEA 2000 cables through a panel or bulkhead, providing a sealed interface and clean installation.
- Are IP-rated bulkhead connectors necessary for all boats?
They are highly recommended for exposed locations and wet environments to prevent water ingress and corrosion.
- Should I choose field serviceable or fixed connectors?
Field serviceable connectors are advantageous for maintenance and repairs, while fixed connectors can offer a simpler, rugged solution for permanent installs.
- How do I know if a connector fits my panel cutout?
Check the manufacturer’s dimensions for hole size and nut dimensions and compare to your panel specifications.
- What does M12 A-Coded mean?
It refers to a standard circular connector code used for sensor and automation connections; ensure your mating halves match in code, pins, and gender.
- Can I mix connectors from different brands on the same NMEA 2000 network?
Yes, as long as the connectors are NMEA 2000 compliant, with compatible electrical characteristics and N2K backbone specifications.
