Best 20 Pin Wiring Harnesses for Aftermarket Car Radios
The best 20 pin wiring harnesses provide reliable connections, easy installation, and compatibility with a range of car stereo models. This guide helps buyers choose harnesses that fit popular Boss, Subaru, Mazda, and other 20-pin head units. Ideal buyers include DIY enthusiasts upgrading factory stereos, installers seeking plug-and-play adapters, and vehicle-specific replacements. The table below highlights five suitable options and who they suit best.
| Product | Brand | Best For | Why It Works |
|---|---|---|---|
| 20-pin Auto Stereo Repair Wire Harness Cable | Anyqinsog | Those with Dual, XDCPA, AVM, or similar models | 100% new kit with quality crimped joints; broad model compatibility |
| New Pyle 20 PIN Wire Harness Radio Plug Stereo | WUHUAMA | DIYers who need a flexible option | DIY-oriented; notes that some wires may have special functions |
| Wire Harness Replacement for Boss Car Radio 20 Pin | SCREENTRONICS | Boss AV/BV/DV series users | Extensive Boss model compatibility; includes color wiring diagram |
| 20 Pin Boss Wiring Harness Radio Stereo Connector | WildTundra | Boss AV/BV/DV users needing 20-pin fit | Specified for 20-pin Boss stereos; ensures fit with many Boss DV/DV series |
| Zenoruslky Stereo Wiring Harness 20Pin | zenoruslky | Boss 20-pin radios with non-amplified systems | Detailed compatibility list; notes shape and pin considerations |
Below are five product sections with detailed specifications, suitability, and practical notes to compare at a glance.
Anyqinsog 20-Pin Auto Stereo Repair Harness
Best for wide compatibility with models like Dual DMCPA70/DMCPA11BT and XDCPA series. Features include a 100% new kit and quality crimped joints, designed for reliable power and grounding connections. This harness supports 16AWG power wires and 20AWG or 0.5mm2 for signal lines, enabling a solid electrical path. Who it’s best for: installers needing a broadly compatible, ready-to-wire option. Limitations: Verify exact pinout for your specific head unit to avoid mismatches with non-listed models.
New Pyle 20 PIN Wire Harness
Better for DIY projects needing a flexible 20-pin harness. The listing notes that it is not an exact original connection, and some wires may have special functions. Who it’s best for: users comfortable adjusting connections as needed. Caution: double-check your stereo manual for wire functions before connecting.
SCREENTRONICS Boss 20 Pin Wiring Harness
Best for Boss car radios with 20-pin connectors, extensive model coverage includes BE10ACP/BE7ACP and BV/BE series. It also highlights a wiring diagram. Who it’s best for: installers focusing on Boss AV/BV/DV head units. Limitation: Does not support 16-pin connectors; confirm your unit’s plug type before purchasing.
WildTundra 20 Pin Boss Wiring Harness
Best for ensuring compatibility with Boss AV/BV/DV series radios, specifically noted for 20-pin Boss stereos. Included guidance advises checking factory radio power sockets for a perfect fit. Who it’s best for: buyers who want a Boss-specific plug-and-play feel. Limitation: Not compatible with non-20-pin sockets or different plug configurations.

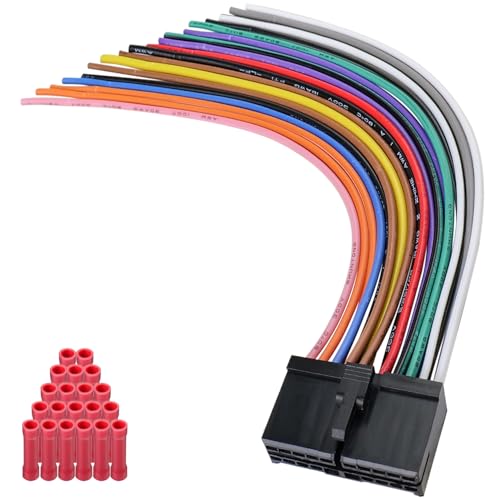

Zenoruslky 20Pin Stereo Harness
Best for Boss 20-pin aftermarket radios without amplified systems. It lists a detailed compatibility pool and notes that some upgraded systems with different ISO sockets may not fit. Who it’s best for: users with Boss 20-pin radios seeking a replacement harness that respects pin shape. Limitation: Ensure your radio’s socket matches the 20-pin T-shape specifically; “+” style connectors may not fit.
Buying Guide
- Connector compatibility: Confirm 20-pin plug type and shape (T-shaped vs “+” style) matches your head unit. Some harnesses explicitly require 20-pin T-shape sockets.
- Vehicle and radio model coverage: Check listed compatible models (Boss, Dual, XDCPA, AV/DV series, Subaru, etc.) to avoid mismatches.
- Wire gauge and wiring diagrams: Verify wire gauges (power/ground typically thicker) and whether a wiring diagram is included for correct color mapping.
- DIY vs professional installation: Some harnesses are DIY-friendly with clear diagrams; others assume professional crimping or soldering. Choose based on comfort level.
- Potential limitations: Some models may have special function wires or may not fit upgraded/amenitized systems. Double-check with the stereo manual before purchase.
- Durability considerations: Look for crimped joints and copper conductors to ensure long-term reliability in automotive environments.
FAQ
- What is a 20-pin wiring harness for car stereos? It is an adapter that connects a head unit’s power and speaker wires to a vehicle’s factory wiring using a 20-pin connector.
- Do all 20-pin harnesses fit all head units? No. Fit depends on the exact connector shape, pinout, and model compatibility. Always verify model compatibility and connector type before purchasing.
- Can I install a 20-pin harness myself? Yes, if you follow wiring diagrams and turn off the vehicle’s power during installation. For complex systems, professional installation is recommended.
- Are there any risks using an aftermarket 20-pin harness? Incorrect pin alignment can cause no power, speaker malfunction, or related issues. Confirm wiring colors and functions with the manual.
- Why do some harnesses note compatibility with specific Boss or Dual models? Manufacturers tailor pinouts to suit specific head units, preventing mismatched power or signal connections.
- What should I do if my harness doesn’t fit? Recheck the model list, verify connector type, and seek an alternative harness designed for your exact head unit and vehicle.
